The TOPP S80 linear actuator is a powerful, high-performance electric window actuator designed for reliable automated opening and closing of top-hung, bottom-hung, pivot, and louvred windows. Built for durability and precision, this 230V model with a 400mm stroke delivers smooth, controlled movement for ventilation applications in commercial, industrial, and residential settings.

KEY BENEFITS

Strong & Reliable Performance
With an impressive 800N thrust force (80kg), the S80 easily handles medium to heavy window systems while maintaining stable, consistent operation.

Built for Tough Environments
The actuator features IP68 protection (for the 400mm stroke version), offering excellent resistance to dust and water ingress — ideal for demanding installations.

Smooth, Quiet Operation
A self-aligning tilting movement and steady speed of approximately 6.5mm per second ensure controlled, low-noise window automation.

Low Maintenance Design
Engineered for long-term reliability, the S80 requires minimal servicing, reducing downtime and ownership costs.

KEY FEATURES

Voltage: 230V AC
Stroke Length: 400mm
Maximum Thrust & Traction: 800N
Protection Rating: IP68 (high water and dust resistance)
Operating Temperature: −20°C to +60°C
Speed: ~6.5 mm/s
Electronic Limit & Safety Stops
Synchronisation Capability: Can operate two actuators together on larger windows
Minimum Window Width: 350mm
Maximum Window Width: 1300mm (use two actuators for wider frames)

APPLICATIONS

Ideal for:

Automated window ventilation systems
Skylights and rooflights
Louvred windows
Commercial building façade ventilation

Note: This actuator is not designed for smoke ventilation systems.

CALL US FOR MORE INFO: Get In Touch

Linear Actuator

Price

Collections

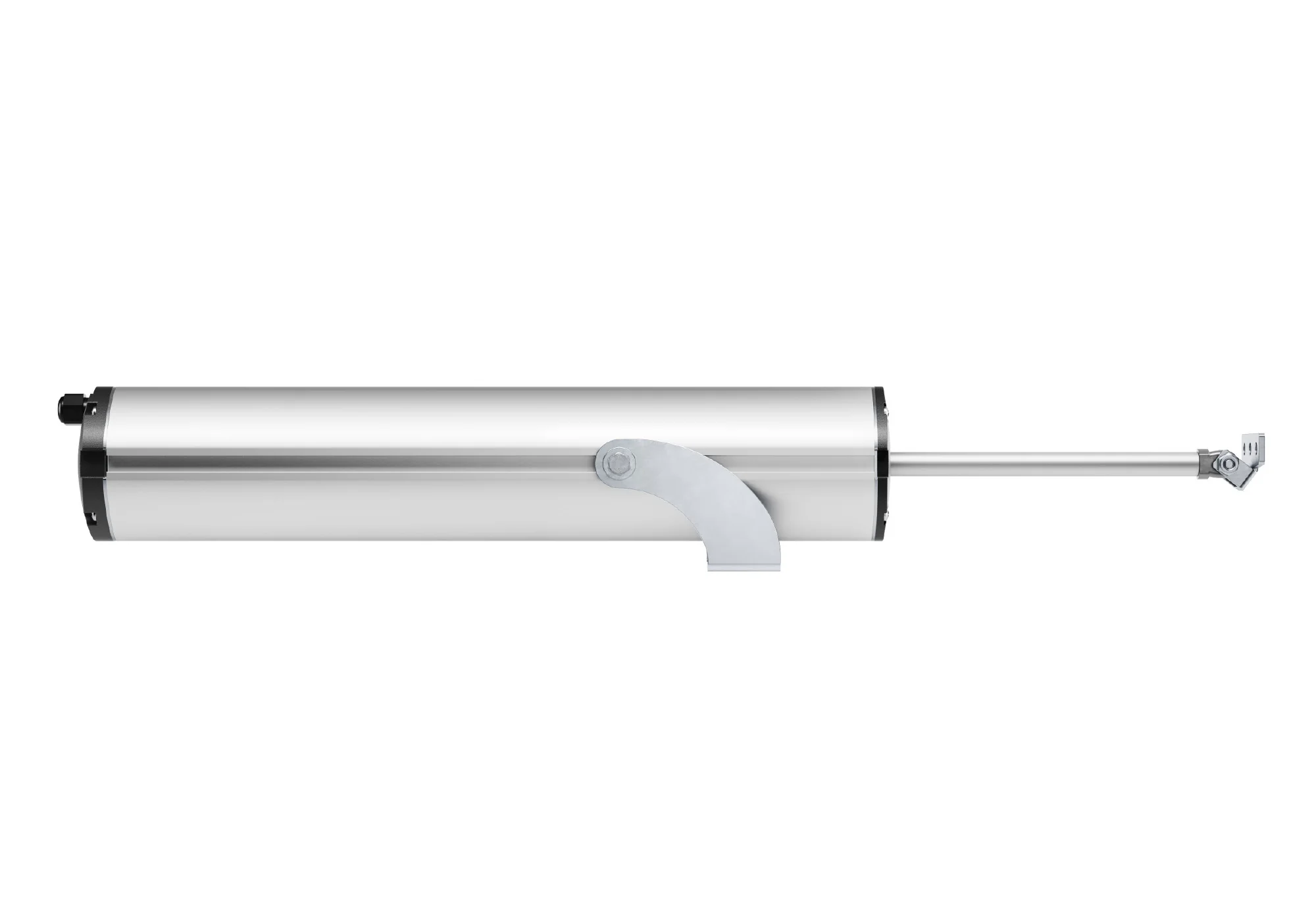

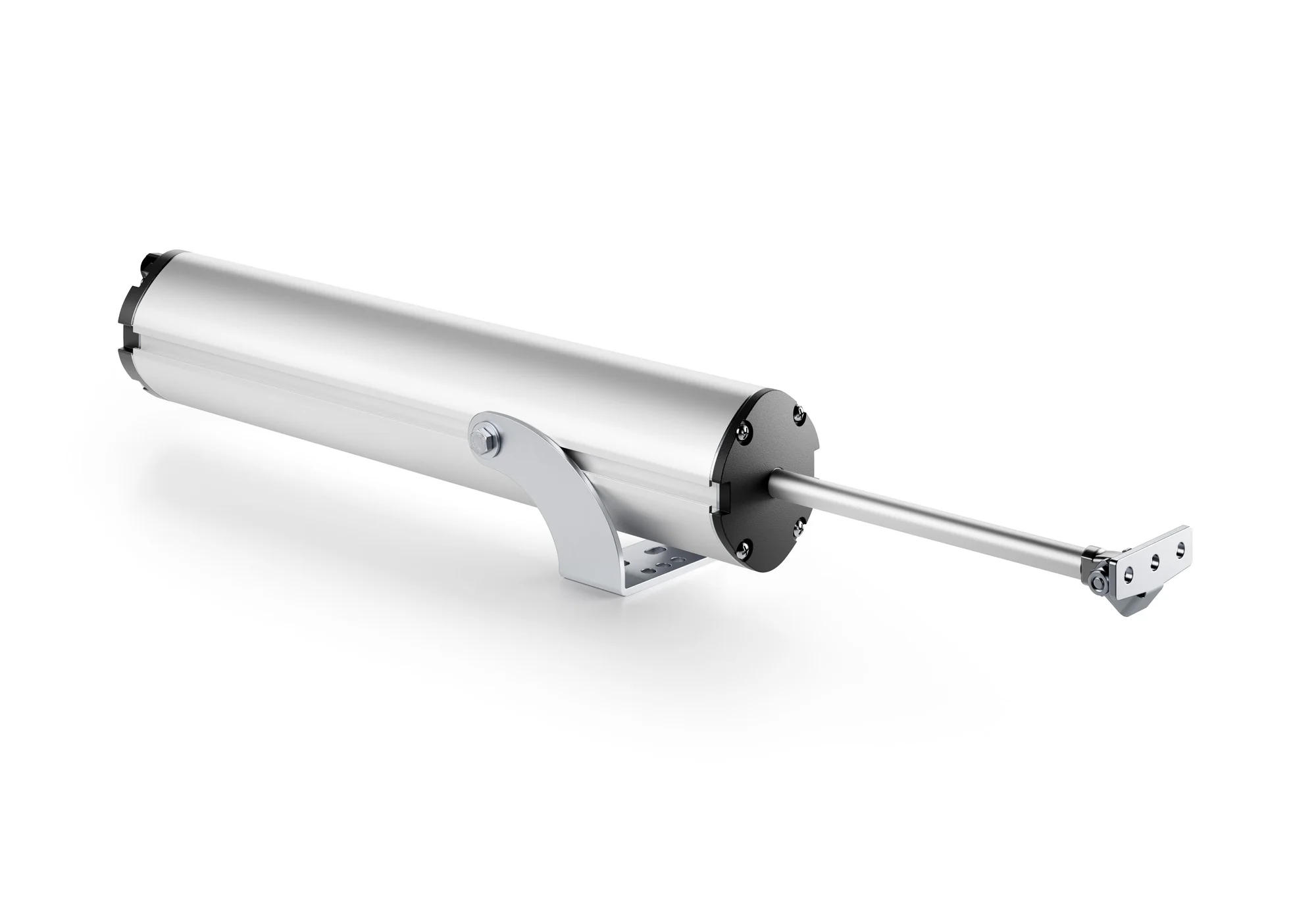

FAST Spindle Linear Actuator 500N S=300 230V

AUMULLER PLA16 400 S12 24VDC Linear Drive 1600N

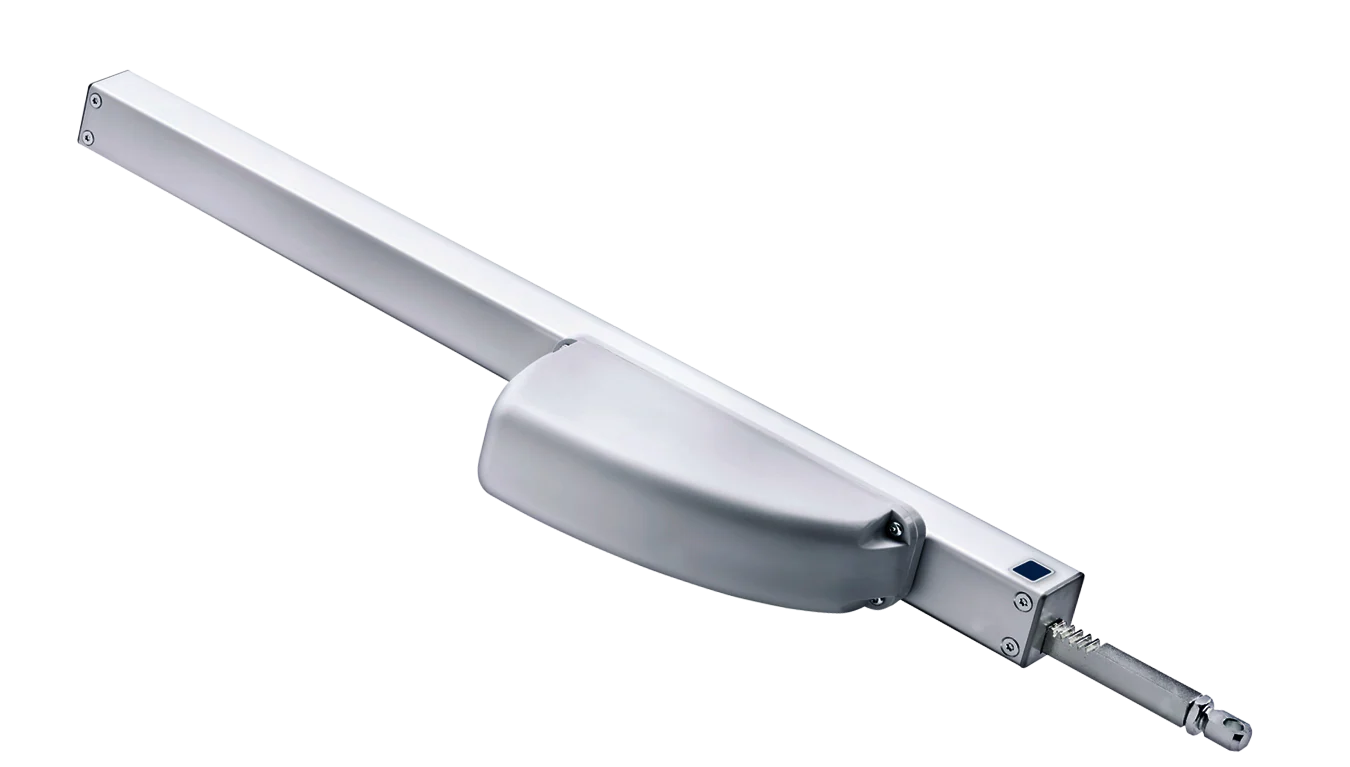

AUMULLER LKS 200mm S2 24VDC Linear Drive 550N

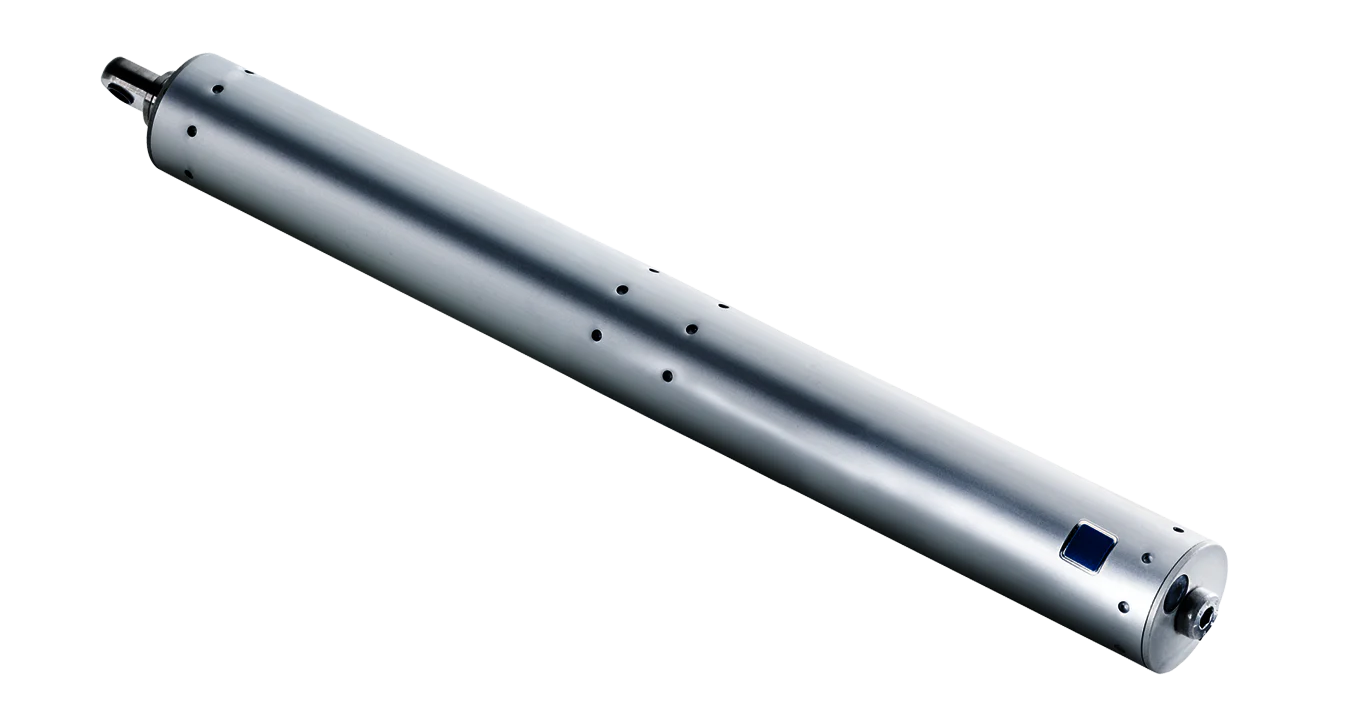

AUMULLER PLA8 400 S12 24VDC Linear Drive 800N
