This state of the art emergency communication system is modular and is designed for a variety of voice alarm guidance applications. The system quickly integrates via a single primary connection to a sounder circuit output from the host fire alarm control panel. The panel comes with a variety of pre-set configurations providing complete notification capability right out of the box.

This highly efficient, modular, state of the art emergency communications system designed to be the voice evacuation extension of an existing fire alarm system.

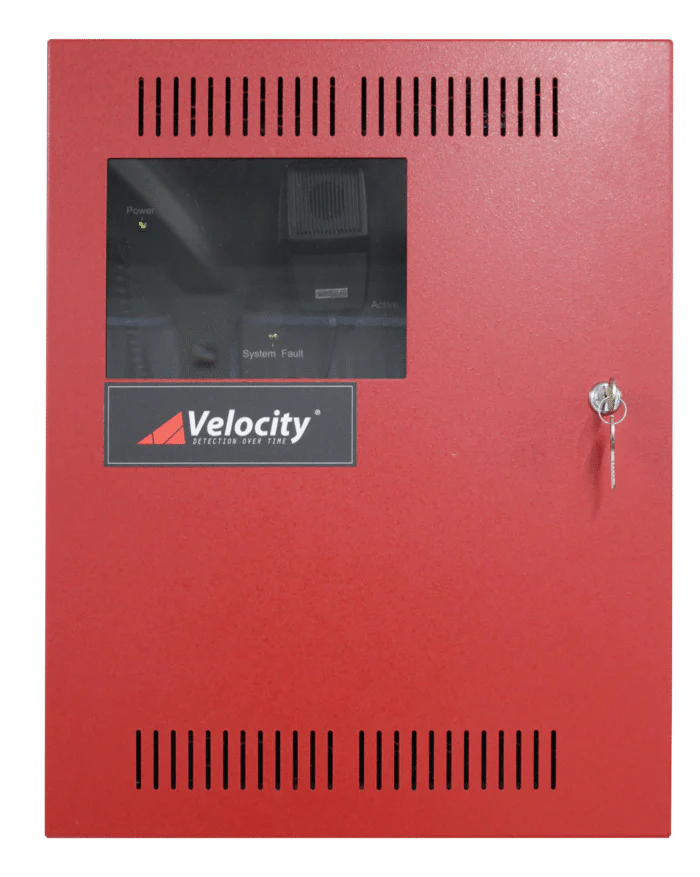

The main control panel (ZT-MNS-100BAS) accommodates virtually any host fire alarm system, integrating quickly and easily from a single primary connection to an alarm / NAC
output from the FACP.

The main control panel is setup as a Class D, 100 watt digital audio power amplifier. It drives x4 separate and selectable power-limited speakers circuits in its standard configuration. Each speaker circuit is continuously supervised, even whilst activated.

Need More Power? Just simply connect a 100 watt booster
panel (ZT-MNS-APB) in series, if you still need more, just add
another one as many times as you like.

Features
100 Watt Control Panel Features (ZT-MNS-100BAS)

• Highly efficient Class D digital audio amplifier
• Audio 100W; 25 Vrms (70 Vrms optional - see overleaf)
• 4 speaker circuits (4 Zones) - Class A or B wiring
• Reverse polarity supervised FACP-NAC primary input
• Supervised dry contact primary activation input
• 2 standard messages preloaded, ready to go
• Prioritized contact closure activation inputs
• Remote microphone input
• Aux audio inputs for paging, background music, and remote system control
• 120/240V 50/60 Hz Input
• Power Supply, Charger and Battery Backup included
