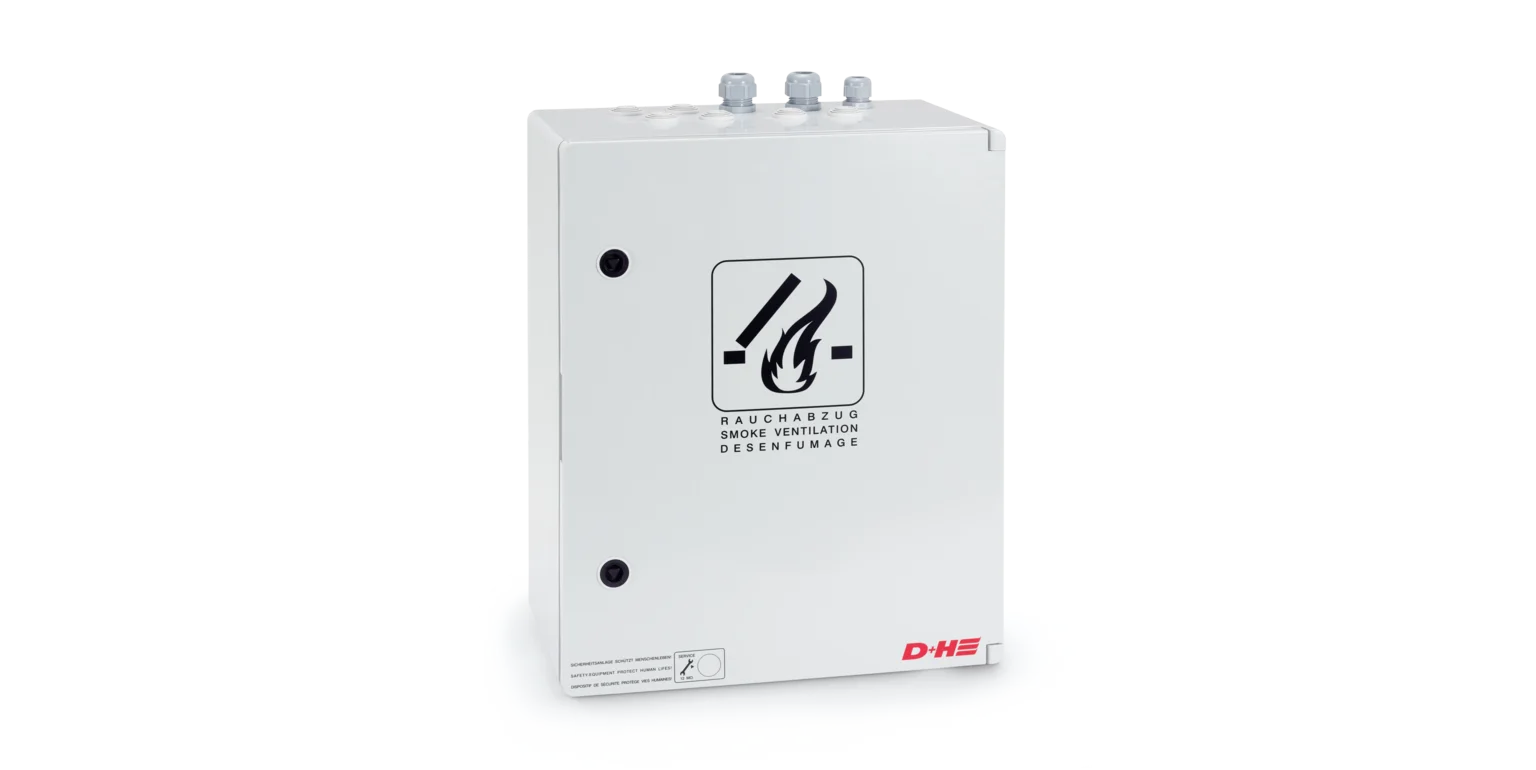

D+H 20A Two Zone Smoke Vent Control Panel
- Compact SHEV control panel especially for high-current applications
- Up to 20 A current consumption per group
- Up to 16 SHEV control panels can be interconnected via the main/sub network (not with design CPS-P1-xxx-xxxx-B)
- Stabilised output voltage
- Configuration can be carried out without software via DIP switches
- Additional functions via the integrated expansion interface (not with design CPS-P1-xxx-xxxx-B)
- Connection of up to 8 SHEV operation panels and 14 fire detectors per line (Only detectors permitted by D+H may be used)
- Min. 72 hr battery backup supply
Ā Technical data:
- Supply: 230 V AC / 50 Hz / 550 VA
- Stand-by power: < 5 W
- Output: 24 V DC / 20 A
- Ripple: < 0,5 Vss
- Mode of operation monitoring: Continuous duty
- Mode of operation alarm / ventilation: Short-time duty 30 % duty cycle
- Type of protection: IP 54
- Temperature range: -5 Ā°C ā¦ +40 Ā°C
- Line / Group: 2 / 2
- Housing: Plastic
- Colour: Light grey (~ RAL 7035)
- W x H x D : 400 x 500 x 245 mm
- Battery type: Typ 4 (2x)
- Weight: 7.35 kg
