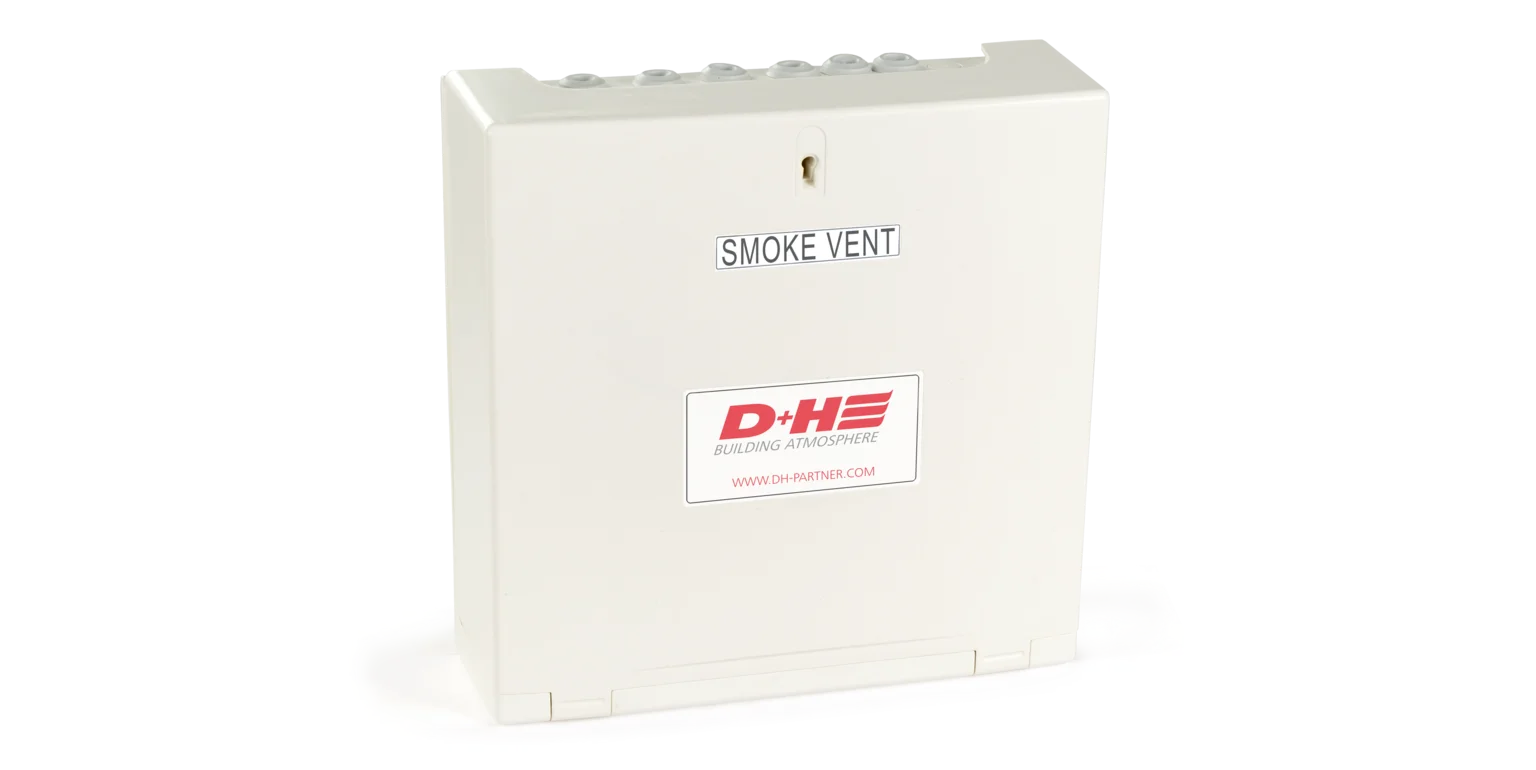

• Compact SHEV control panel, specifically for stairwells
• Tested and certified according to ISO 21927‑9, VdS 2581, VdS 2593, VdS 2344, DIN EN 12101‑10 and EN 62368-1:2014 + A11:2017, fulfils the building authority requirements in accordance with DIN 18232-9
• Up to 5 A total drive current
• Stabilised output voltage
• Switchable SHEV safety functions: Fault equal to alarm, SHEV retriggering function and smoke detector remote reset
• Integrated comfort functions for daily ventilation
• Optional connection to rain detectors or wind / rain sensors without an additional module
• Connection of up to 8 SHEV operation panels and 8 fire detectors per line (Only detectors permitted by D+H may be used)
• Min. 72 hr battery backup supply

 Performance features:

• A stabilised output voltage is provided by the control panel.
• A maximum of 8 SHEV operation panels and 8 fire detectors can be connected per line.
• The SHEV control panel is tested and certified according to ISO 21927-9, VdS 2581, VdS 2593, VdS 2344, DIN EN 12101-10 and EN 62368-1:2014 + A11:2017 and also fulfils the building authority requirements in accordance with DIN 18232-9.
• Only detectors approved by D+H may be used for the connection of fire detectors.
• An integrated emergency battery power for at least 72 hours is integrated in the housing.
• Switchable SHEV safety functions: Fault equal to alarm.
• SHEV retriggering function, smoke detector remote reset, cable monitoring for short circuit and interruption can be realised with the control unit.
• Connection options for optical and acoustic alarm devices are also available.
• The control panel can be used for daily ventilation, ventilation time can be set on the central unit.
• An optional wind / rain sensor can be connected directly
