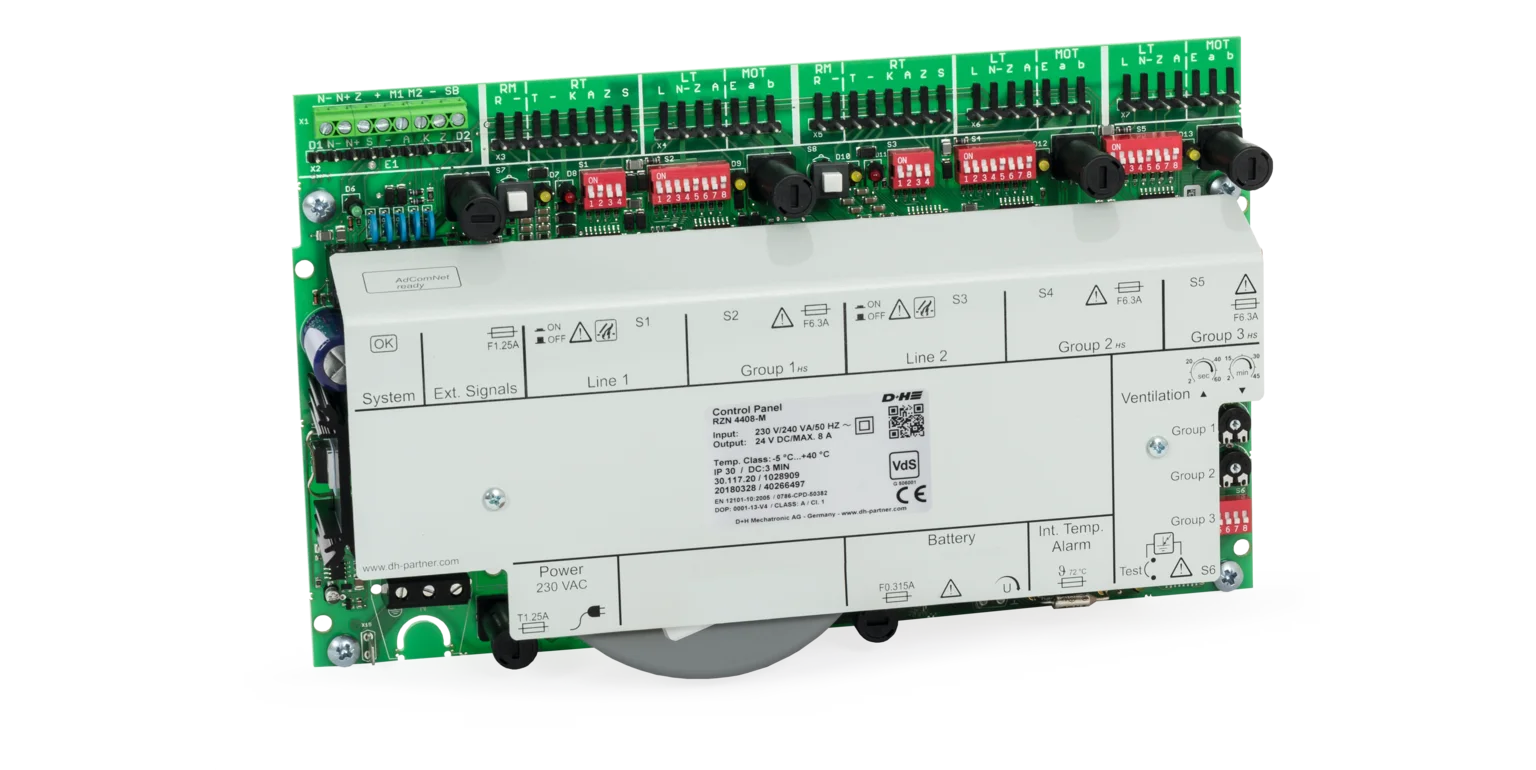

D+H 8A Two Zone Smoke Vent Control Panel c/w 3 Natvent Groups
- Compact SHEV control panel - AdComNet ready
- Tested and certified according to ISO 21927ā9, VdS 2581, VdS 2593, VdS 2344 and DIN EN 12101ā10, fulfils the building authority requirements in accordance with DIN 18232-9
- Up to 8 A total drive current
- Stabilised output voltage
- Switchable SHEV safety functions: Fault equal to alarm, SHEV retriggering function and smoke detector remote reset
- Option to combine SHEV / building alarm function
- Integrated comfort functions for daily ventilation
- Optional connection to rain detectors or wind / rain sensors without an additional module
- Connection of up to 8 SHEV operation panels and 14 fire detectors per line (Only detectors permitted by D+H may be used)
- Min. 72 hr battery backup supply
Ā Technical data:
- Supply: 230 V AC / 50 Hz / 240 VA
- Stand-by power: 5 W
- Output: 24 V DC / 8 A
- Ripple: < 2 Vss
- Mode of operation monitoring: Continuous duty
- Mode of operation alarm / ventilation: Short-time duty 30 % duty cycle
- Temperature range: -5 Ā°C ā¦ +40 Ā°C
- Line / Group: 2 / 3
- Battery type: Typ 8 (2x)
- Weight: 2.9 kg
Product Information
Product Information
Shipping & Returns
Shipping & Returns
D+H 8A Two Zone Smoke Vent Control Panel c/w 3 Natvent Groups
D+H 8A Two Zone Smoke Vent Control Panel c/w 3 Natvent Groups
- Compact SHEV control panel - AdComNet ready
- Tested and certified according to ISO 21927ā9, VdS 2581, VdS 2593, VdS 2344 and DIN EN 12101ā10, fulfils the building authority requirements in accordance with DIN 18232-9
- Up to 8 A total drive current
- Stabilised output voltage
- Switchable SHEV safety functions: Fault equal to alarm, SHEV retriggering function and smoke detector remote reset
- Option to combine SHEV / building alarm function
- Integrated comfort functions for daily ventilation
- Optional connection to rain detectors or wind / rain sensors without an additional module
- Connection of up to 8 SHEV operation panels and 14 fire detectors per line (Only detectors permitted by D+H may be used)
- Min. 72 hr battery backup supply
Ā Technical data:
- Supply: 230 V AC / 50 Hz / 240 VA
- Stand-by power: 5 W
- Output: 24 V DC / 8 A
- Ripple: < 2 Vss
- Mode of operation monitoring: Continuous duty
- Mode of operation alarm / ventilation: Short-time duty 30 % duty cycle
- Temperature range: -5 Ā°C ā¦ +40 Ā°C
- Line / Group: 2 / 3
- Battery type: Typ 8 (2x)
- Weight: 2.9 kg
$352.63
Original: $1,175.42
-70%D+H 8A Two Zone Smoke Vent Control Panel c/w 3 Natvent Groupsā
$1,175.42
$352.63Product Information
