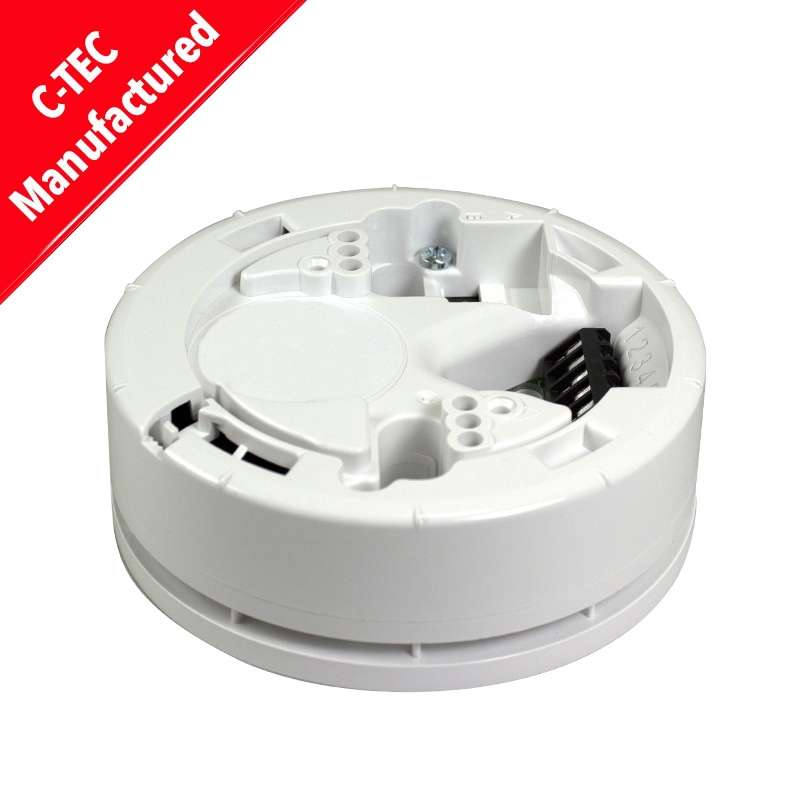

ActiV Base voice sounder white

Superb sound intelligibility.
Choose from two evacuation voice messages and four evacuation alarm tones (your selected evacuation message will be preceded by the selected tone).
Alarm Current at 30Vdc = 10mA.
Alarm Current at 18Vdc = 8mA.
Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
Supplied with a BF431QCP quick connect plate and detector spur wires.
IP21C rated.

Technical Specifications

Protocol/compatibility	Compatible with C-TEC's CFP, FP, MFP and EP203 conventional fire alarm panels and virtually all other makes (testing on third-party panels is recommended before use)
Application/operation	Designed to be ceiling mounted – either stand-alone with a red or white cap or as part of a stacked Sounder/Detector Base combination.
Supply/operating voltage	18 to 30V DC.
Alarm current	At 30Vdc: 10mA; At 18Vdc: 8mA.
Product dimensions (mm)	122mm diameter x 46mm deep (not including optional detector and base).
IP Rating	IP21C (Type A).
Weight	160g.
Operating conditions/temperature	-10ºC to +55ºC. Max. 95% RH (Non-condensing).
Notes	Choose from 2 evacuation voice messages and 4 evacuation tones. Note all of these have an associated alert tone/message, the activation of which requires additional wiring and control functionality.
