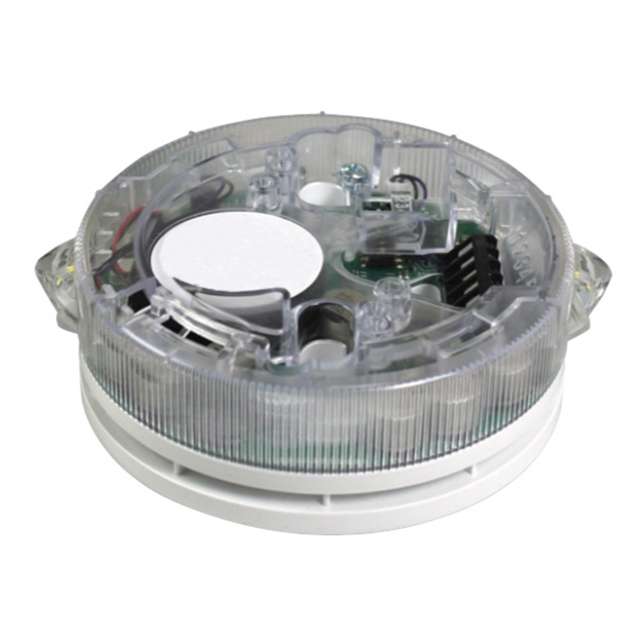

CAST O Class Base Corridor VAD Sounder WHITE
Lee to add
- LPCB certified to EN54-3, 23 & 17 and Kiwa Telefication & DBI certified to EN54-13.
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Provides āO-R-3-2.5-18ā rated light distribution.
-

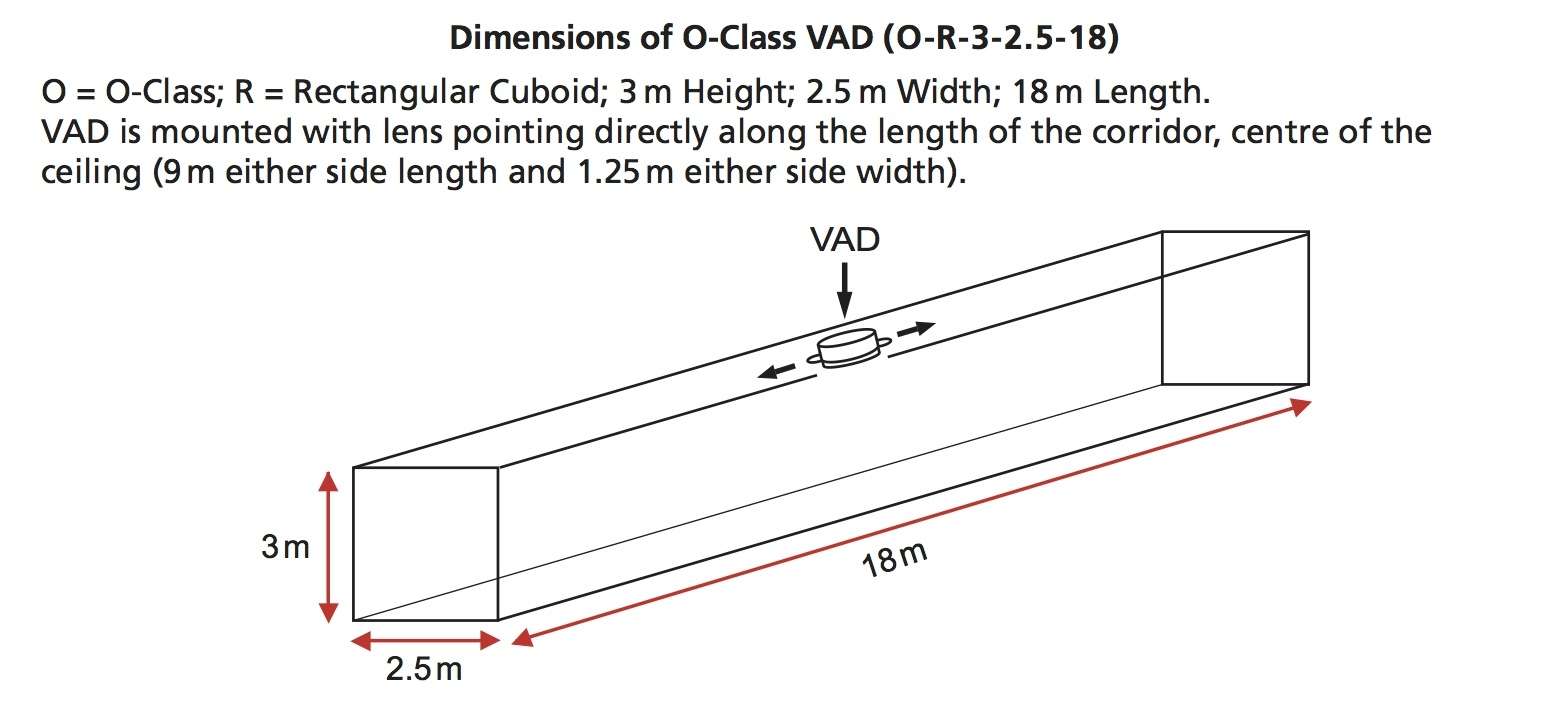

Ideal for use in corridors (mount in a specific orientation for 2.5m width & 18m length rated coverage). See VAD Coverage section below for further details.
- 92dB(A) sound output @ 1m.
- Onboard short-circuit loop isolator.
- 12.5mA typical alarm current (460ĀµA typical quiescent) @ 27-40V DC.
- Group addressing facility allows multiple devices to be operated simultaneously.
- 4 selectable volume levels and 31 selectable tones.
- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
- IP21C rated.
- White ceiling fixing plate & detector spur wires included.
Ā
Technical Specifications
| Approvals/certifications |
Certified by SBSC to the relevant parts of EN54,Ā DBI certified to EN54-13,Ā LPCB certified to EN54-3, 17 & 23 and Kiwa Telefication certified to EN54-13 |
|---|---|
| Protocol/compatibility |
Compatible with C-TEC's CAST protocol Addressable Fire Panels. |
| Application/operation |

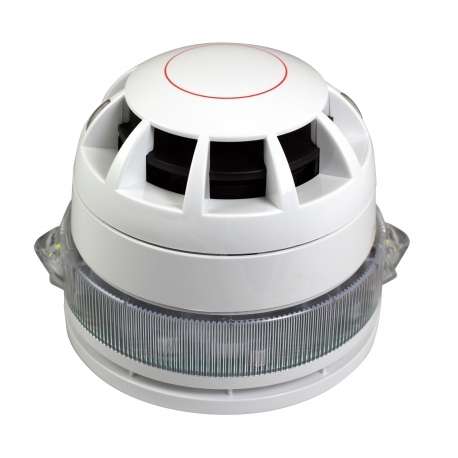

Designed to be ceiling mounted ā either stand-alone with a red or white cap or as part of a stacked Sounder/VAD/Detector Base combination. Ideal for use in corridors. |
| VAD category & coverage |
O-R-3-2.5-18. |
| Flash rate & colour |
0.5Hz / White. |
| Supply/operating voltage |
27 to 40V DC. |
| Quiescent current |
460ĀµA @ 27 to 40V DC (typical). |
| Nominal SPL (Sound Pressure Level) |
92dB(A) when set to tone 1. |
| Alarm current |
12.5mA 27 to 40V DC (typical, VAD lit, Sounder on max). |
| Indicators |
Polling (red LED). |
| Product dimensions (mm) |
122mm diameter x 46mm deep (not including optional CAST detector and base). |
| IP Rating |
IP21C (Type A). |
| Weight |
170g. |
| Operating conditions/temperature |
