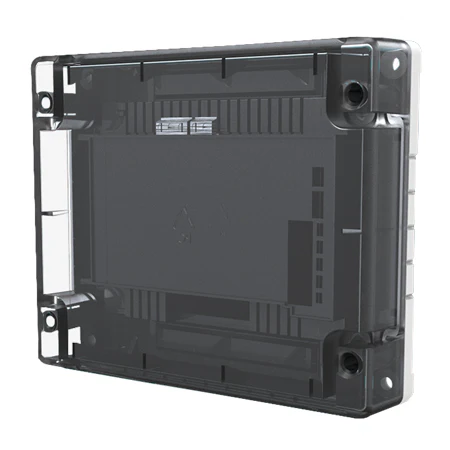

Hochiki Dual Input Module with SCI
Model CHQ-DIM2(SCI) is a Dual Input Module designed to interface to a variety of inputs such as door contacts, sprinkler flow/door switches and plant equipment. Also available as a DIN Rail mountable version; both models feature an integral short-circuit isolator.
A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-DIM2(SCI), increases the IP rating to IP65.
Key Features:
ā Single Loop Address
ā Loop Powered
ā 2 Independent Inputs for Monitoring of Volt Free Contacts
ā Each Input can be Configured to Monitor either Normally Open or Normally Closed contacts
ā DIN-Rail version available
ā Both models feature an integral SCI
ā Both models approved by LPCB
