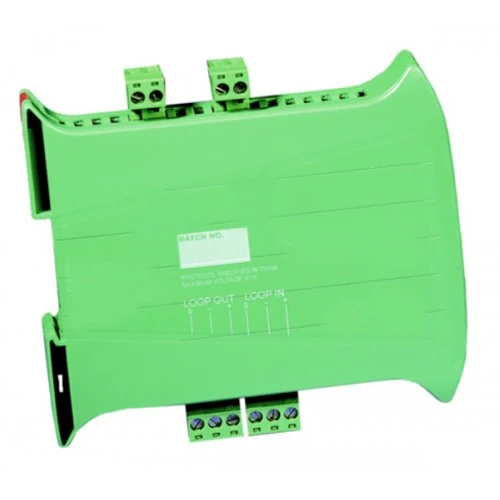

Hochiki Dual Zone Monitor - DIN Enclosure with SCI
Model CHQ-DZM/DIN(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochikiās ESP analogue addressable system. The unit also features a Schottky Diode line continuity option, when used inconjunction with the optional LCMU.
Full monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensure the integrity of the CHQ-DZM/DIN(SCI) at all times. The unit utilises simple DIL switches for reliable addressing. It is also available as a boxed module (CHQ-DZM(SCI)). Both models feature an integral short-circuit isolator.
NOTE: When Resistive EOL option is chosen the conventional zone on the CHQ-DZM/DIN(SCI) does not support any line continuity options, therefore if Call Points are being interfaced they should be wired at the beginning of the zone.
Key Features:
ā Single loop address
ā Supports two independent zones of conventional detectors
ā Both zones fully monitored for short/open circuit
ā Requires an auxiliary 24 V dc supply
ā Also available as a boxed module
ā Both models feature an integral short-circuit isolator
ā Approved by LPCB
