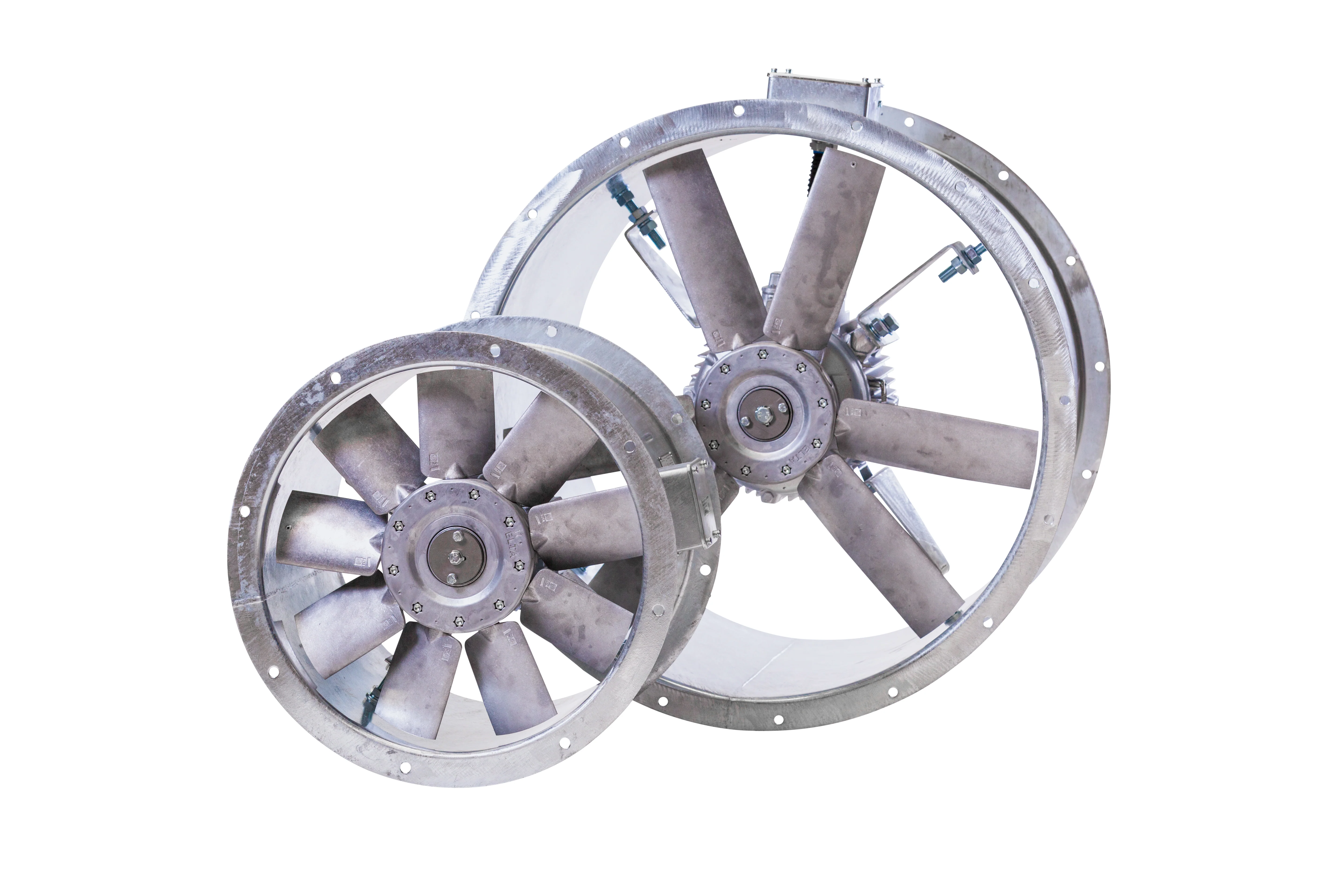

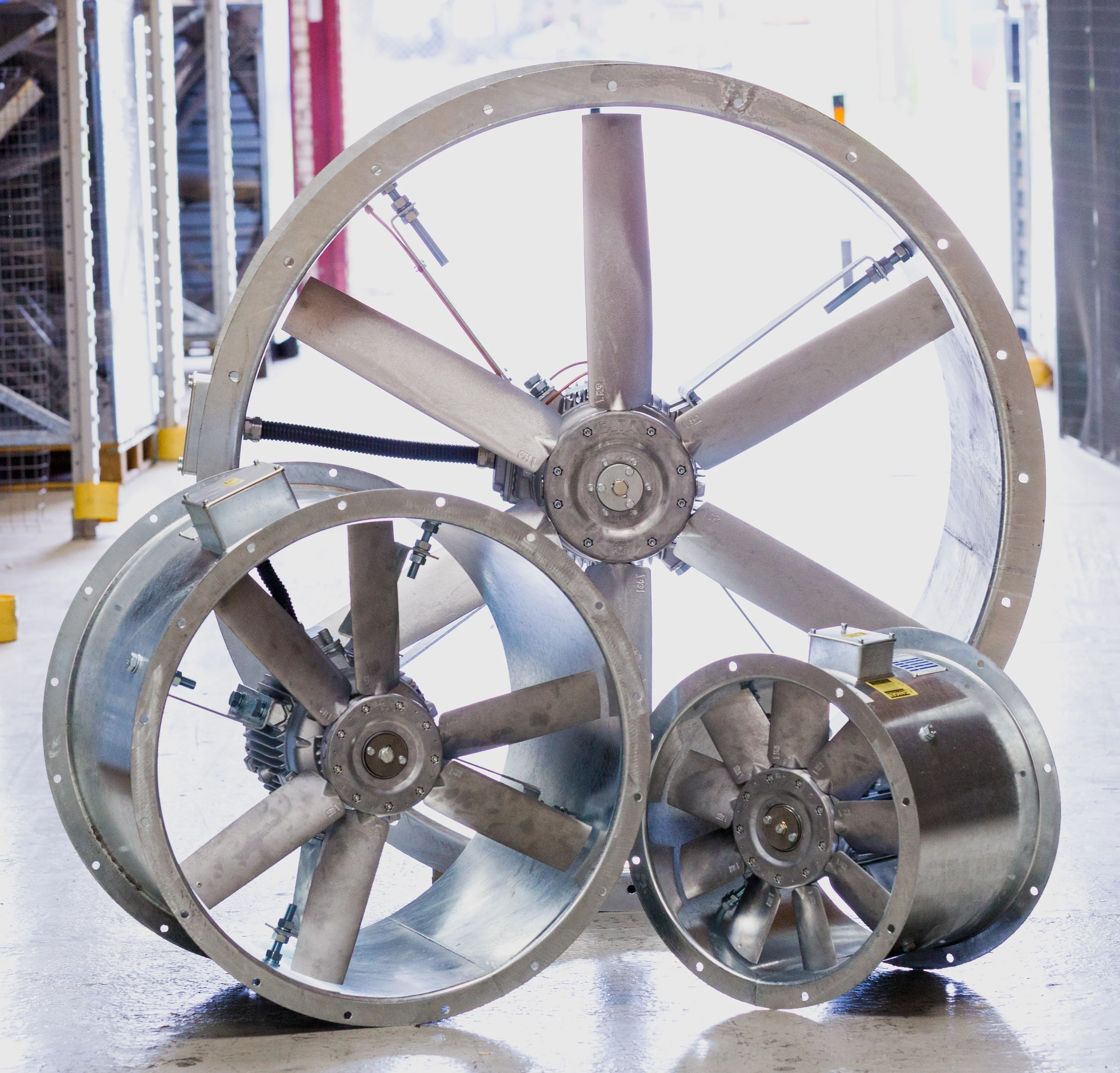

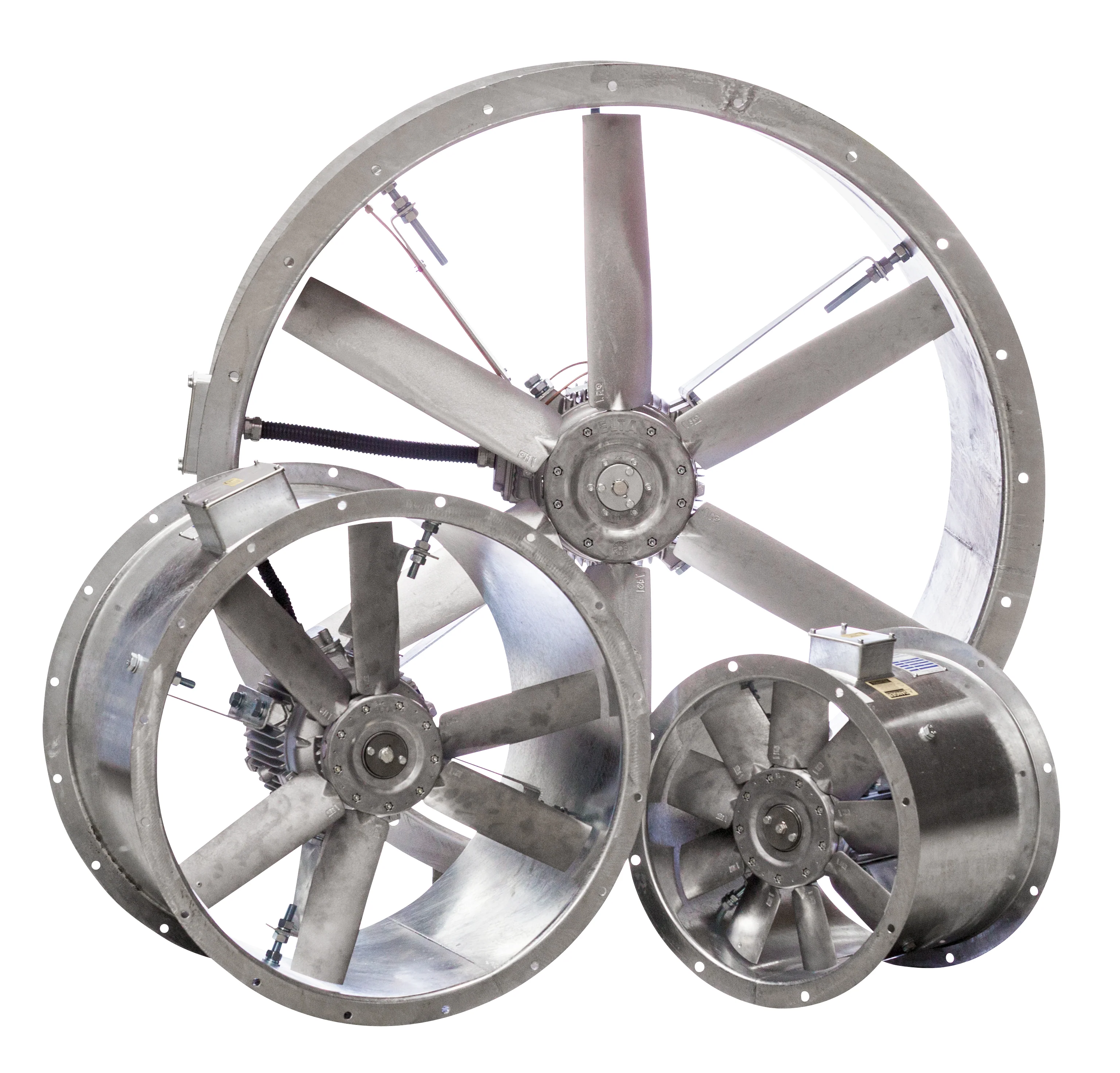

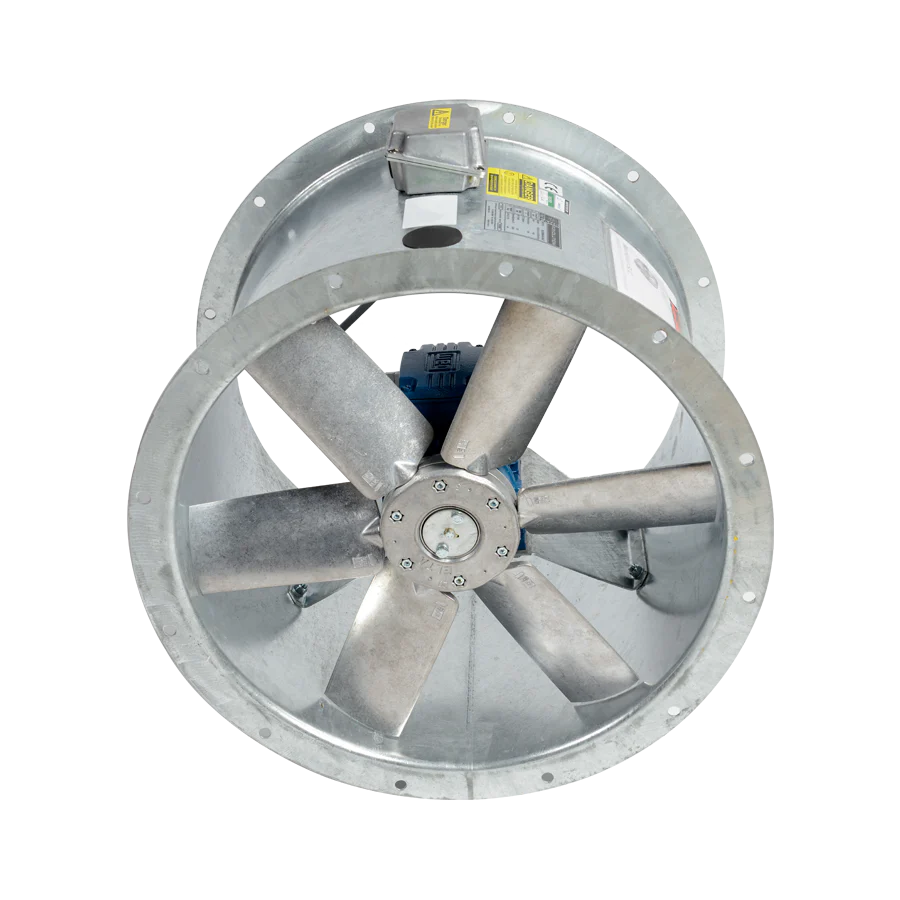

Description: Long Cased Smoke Axial Fan

ACTUAL -
Air Flow: 6.00 m³/s
Static Pressure: 693 Pa
Total Pressure: 832 Pa

FAN DATA -
Diameter: 710 mm
Impeller Type: Axial
Blade Material: Aluminum
Speed: 2880 r/min @50 Hz
Power, Abs: 7.95 kW
Input Power: 8.83 kW
Efficiency Total: 62.8%
SFP: 1.47
Fan Weight: 113.9 kg
Hub: 181 mm
Pitch: 20°
Blades: 6
Form: B
Peak: 7.96 kW
Static: 52.4%

MOTOR DATA (at STP) -
Motor Type: F300 (IE3)
Electrical Supply: 400V 3ph 50Hz
Motor Frame: 132S
Motor Power: 9.00kW (AOM) (7.50kW IEC)
FLC/Start (DOL): 16.68A (AOM) / 119.96A (13.90A FL IEC)
Motor Speed: 2 pole
Motor Efficiency: 90.1%
